520

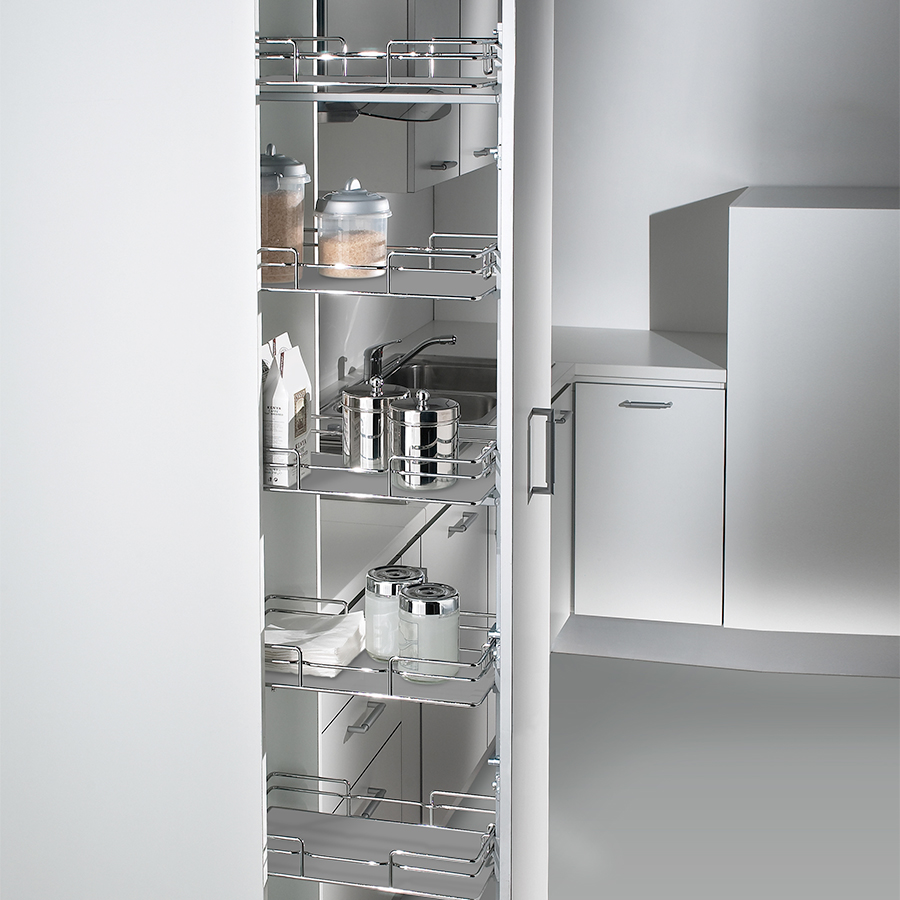

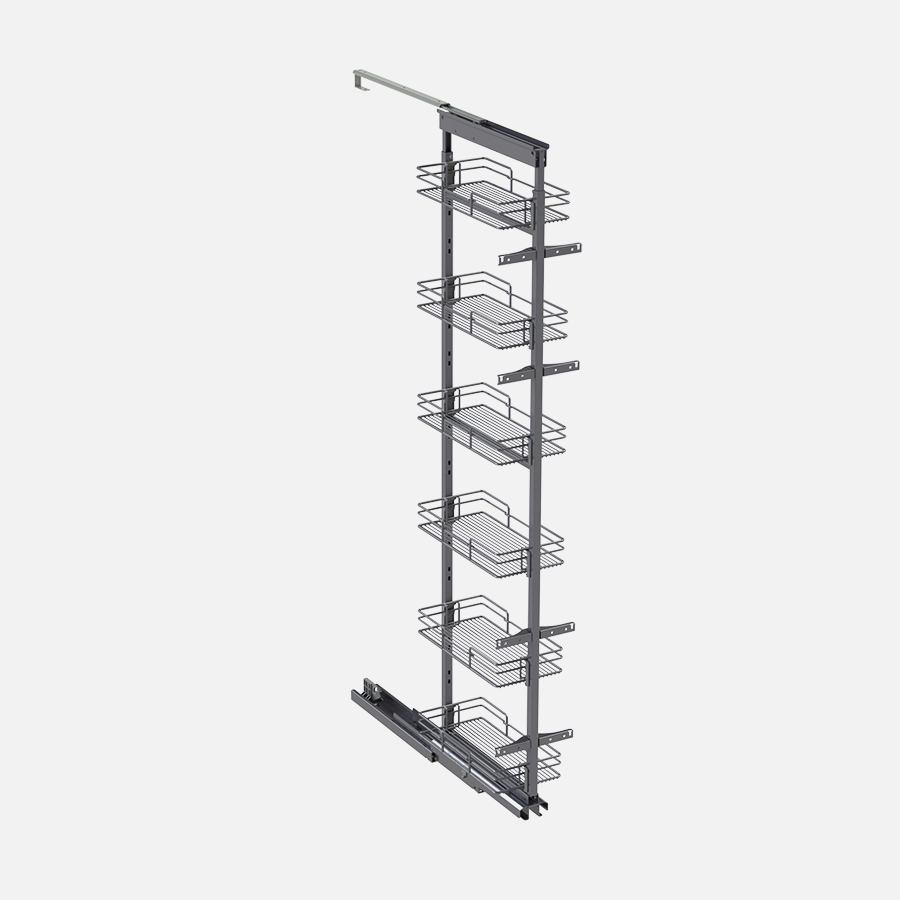

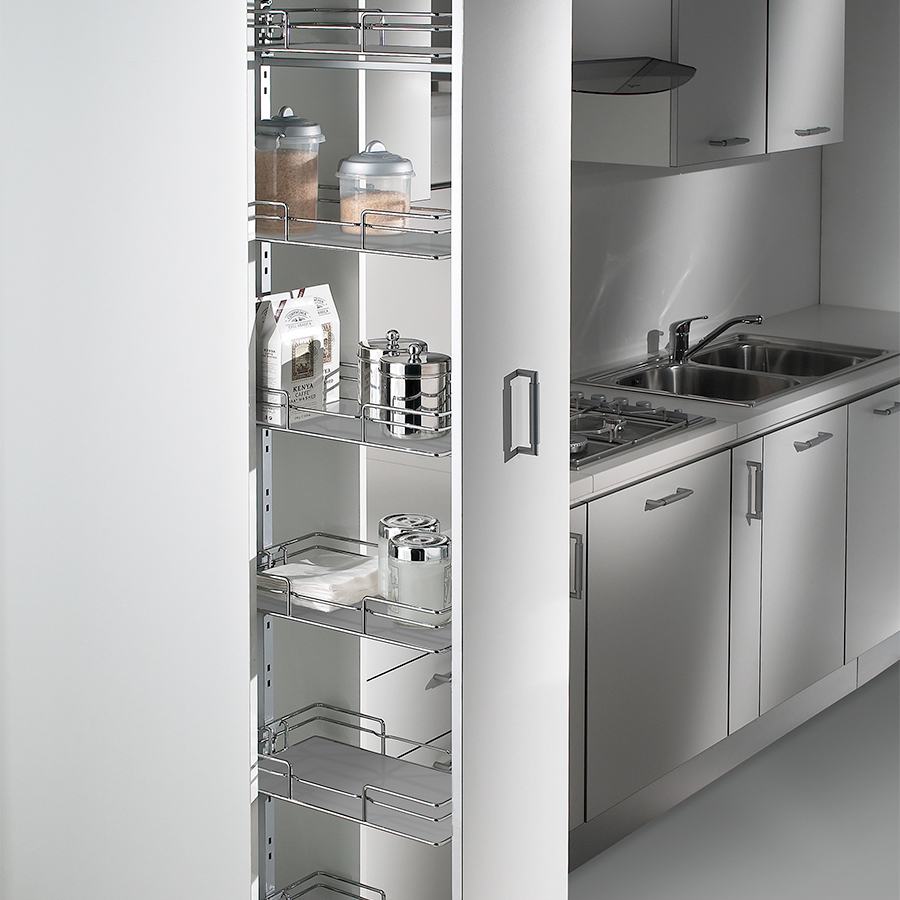

PULL-OUT PANTRY UNIT (ADJUSTABLE HEIGHT)

With total extraction runners. Load capacity 120 kg. Double slowmotion system.

The mechanical system is tested by LGA with 132 Kgs load (with quality warranty included) under 66.000 cycles without any deformation and/or damage.

Product Details

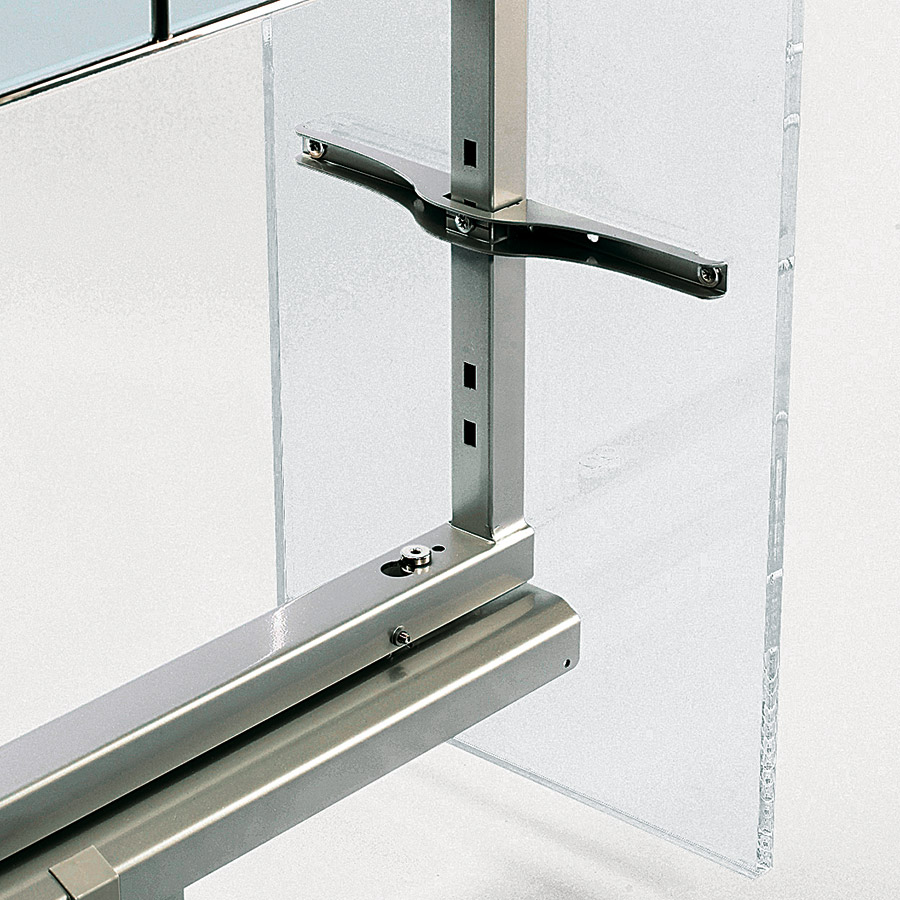

The door position has three-way adjustment

Cod. Article

Version

H

L

D

Baskets

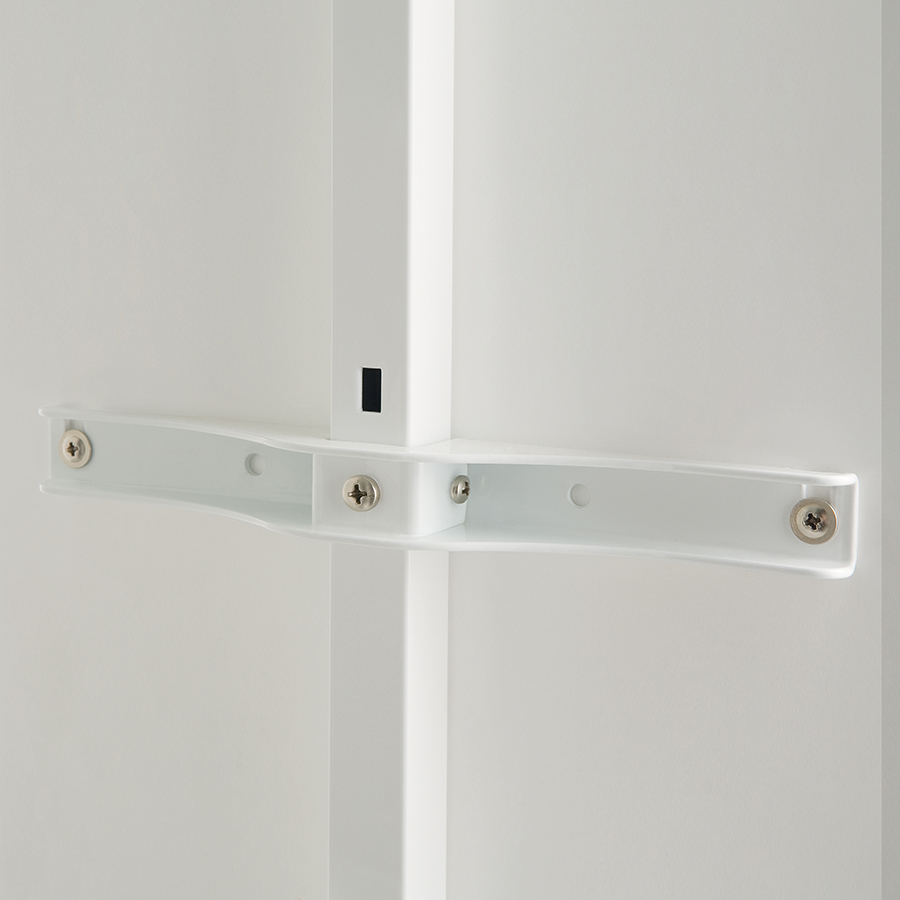

Cross pieces
523 Standard
001*
mm 1130-1310
mm 107
mm 494
4
2
05*
mm 1130-1310
mm 257
mm 494
4
2
09*
mm 1130-1310
mm 357
mm 494
4
2
11*
mm 1130-1310
mm 407
mm 494
4
2
13*
mm 1130-1310
mm 457
mm 494
4
2
15*
mm 1130-1310
mm 557
mm 494
4
2

524 Standard
001*
mm 1310-1510
mm 107
mm 494
4
2
05*
mm 1310-1510
mm 257
mm 494
4
2
09*
mm 1310-1510
mm 357
mm 494
4
2
11*
mm 1310-1510
mm 407
mm 494
4
2
13*
mm 1310-1510
mm 457
mm 494
4
2
15*
mm 1310-1510
mm 557
mm 494
4
2

525 Standard
001*
mm 1510-1700
mm 107
mm 494
5
3
05*
mm 1510-1700
mm 257
mm 494
5
3
09*
mm 1510-1700
mm 357
mm 494
5
3
11*
mm 1510-1700
mm 407
mm 494
5
3
13*
mm 1510-1700
mm 457
mm 494
5
3
15*
mm 1510-1700
mm 557
mm 494
5
3

526 Standard
001*
mm 1700-1900
mm 107
mm 494
5
4
05*
mm 1700-1900
mm 257
mm 494
5
4
09*
mm 1700-1900
mm 357
mm 494
5
4
11*
mm 1700-1900
mm 407
mm 494
5
4
13*
mm 1700-1900
mm 457
mm 494
5
4
15*
mm 1700-1900
mm 557
mm 494
5
4

527 Standard
001*
mm 1900-2080
mm 107
mm 494
6
4
05*
mm 1900-2080
mm 257
mm 494
6
4
09*
mm 1900-2080
mm 357
mm 494
6
4
11*
mm 1900-2080
mm 407
mm 494
6
4
13*
mm 1900-2080
mm 457
mm 494
6
4
15*
mm 1900-2080
mm 557
mm 494
6
4

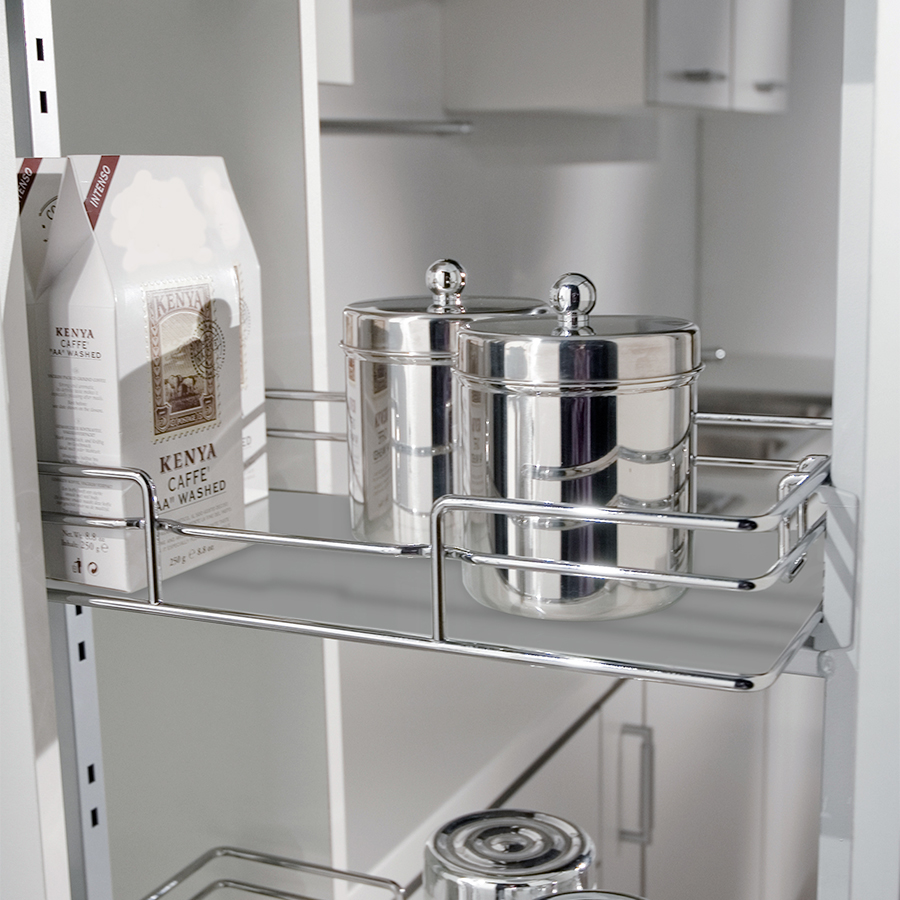

Baskets

G: Grey painted wire/grey frame

I: Grey painted wire/grey wooden bottom/grey frame

C: Chromed wire/grey frame

D: Orion painted wire/orion wooden bottom/orion frame

K: Chromed wire/grey wooden bottom/grey frame

H: White sheet metal and glass

B: Chromed wire/white wooden bottom/white frame

F: Orion sheet metal and wood
