597

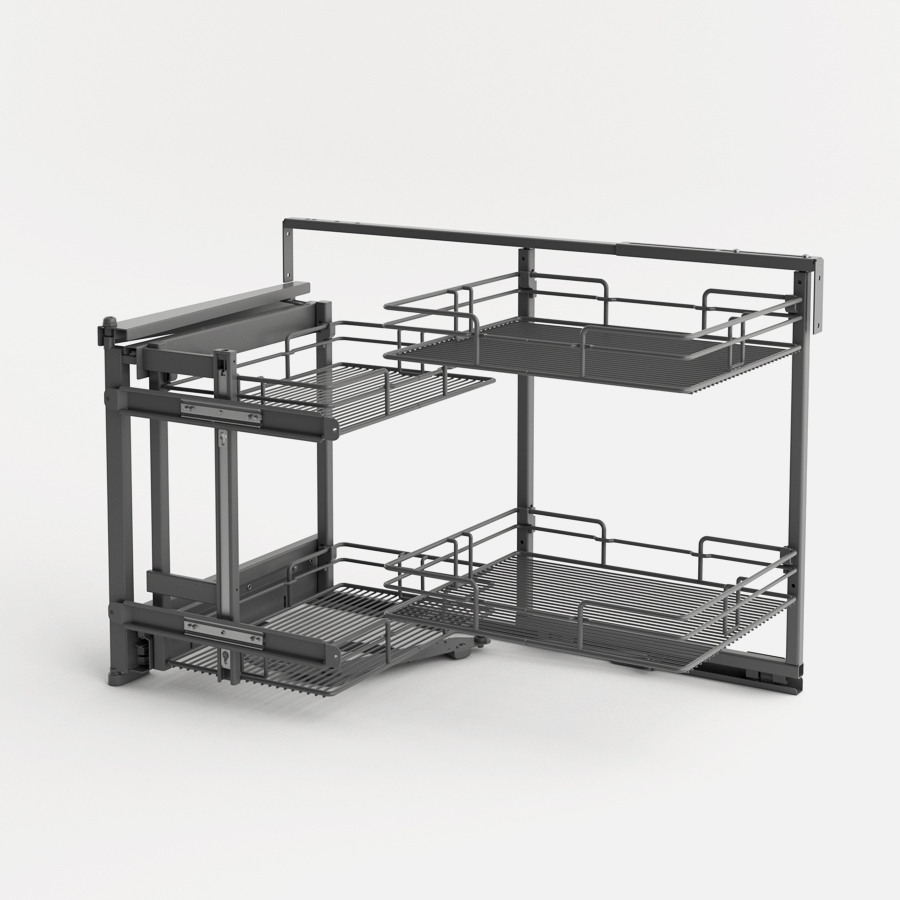

Double corner mechanism with inner fixed baskets with door brackets

Mechanism with high load capacity runner with soft-close
Three-dimensional adjustment of the door
Maximum load per basket: 9 kg (inner), 7 kg (outer)
The upper external basket can be adjusted in height
Installation depth: 485 mm
Installation height: 615 mm
Non-reversible product

Product Details

  • W
    K* (min-max)
  • 400
    350
    760-930
  • 450
    400
    860-1020
  • 500
    450
    890-1020
  • 600
    550
    945-1270

Finishes available (baskets/mechanism): Grey/Grey Chrome/Grey Orion/Orion

K* = cabinet internal widht
